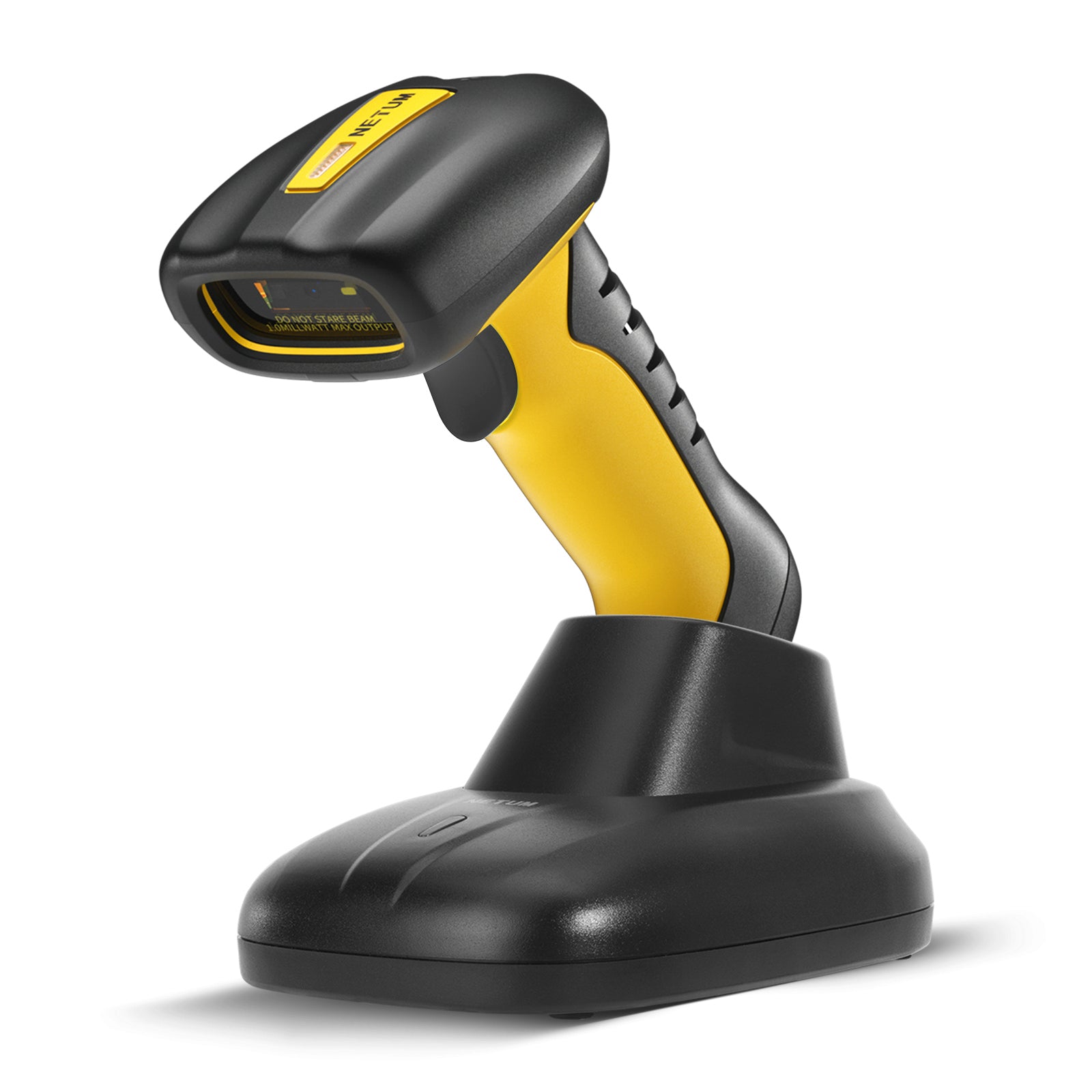

NETUM NT-1202W Upgraded QR Industrial Bluetooth Barcode Scanner with Charging Dock

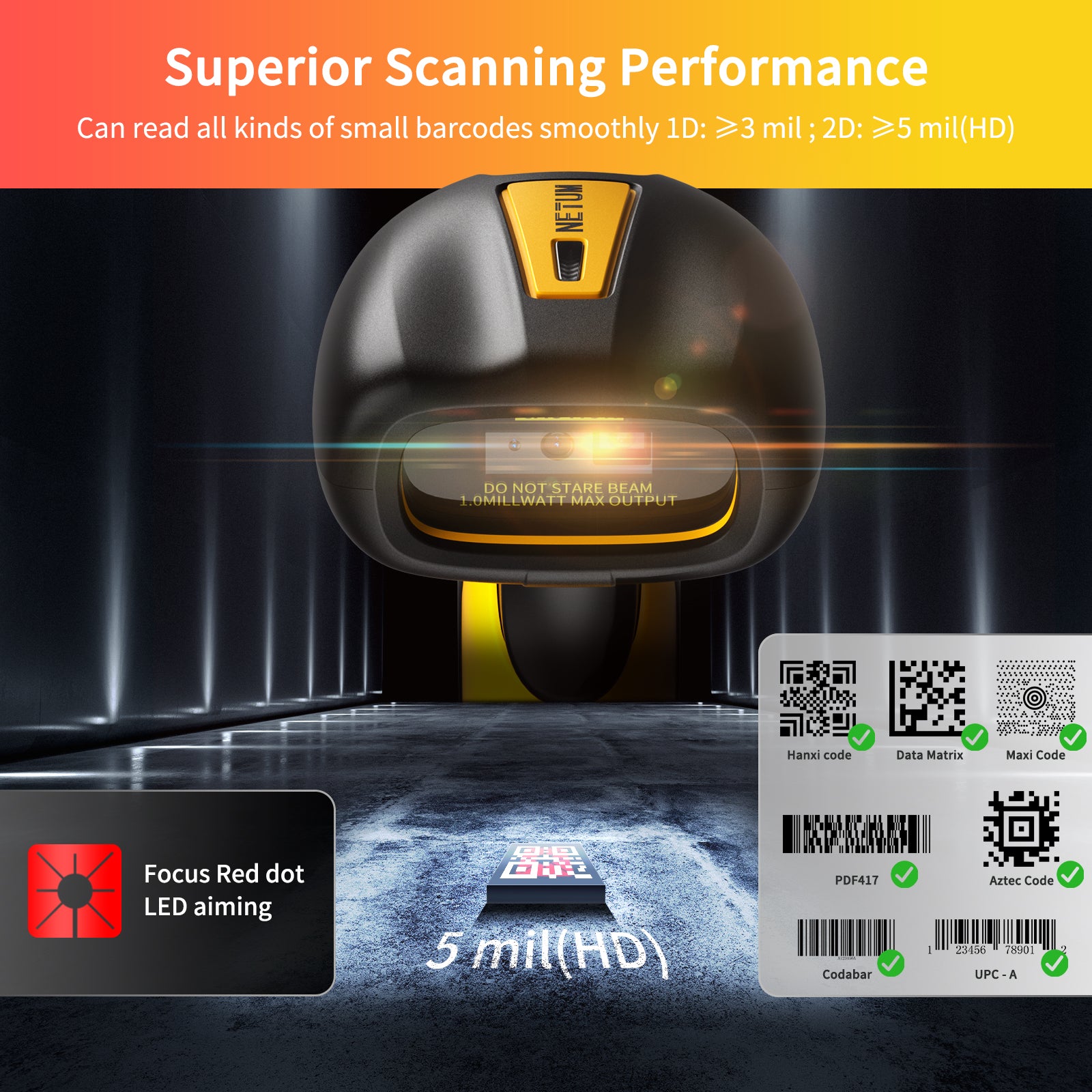

Superior Scanning Performance
NETUM NT-1202W Barcode Scanner is equipped with advanced 1280H × 1024V pixels(1.3M) CMOS sensor. With high-speed global exposure, the scanning speed is faster, and Maximum frame rate 120FPS. it can read all kinds of small barcodes smoothly(1D: ≥3 mil ; 2D: ≥5 mil(HD); 2D: ≥7 mil(SR)).
It can be widely used in electronics manufacturing, photovoltaic, new energy, medical and inspection equipment, intelligent manufacturing.

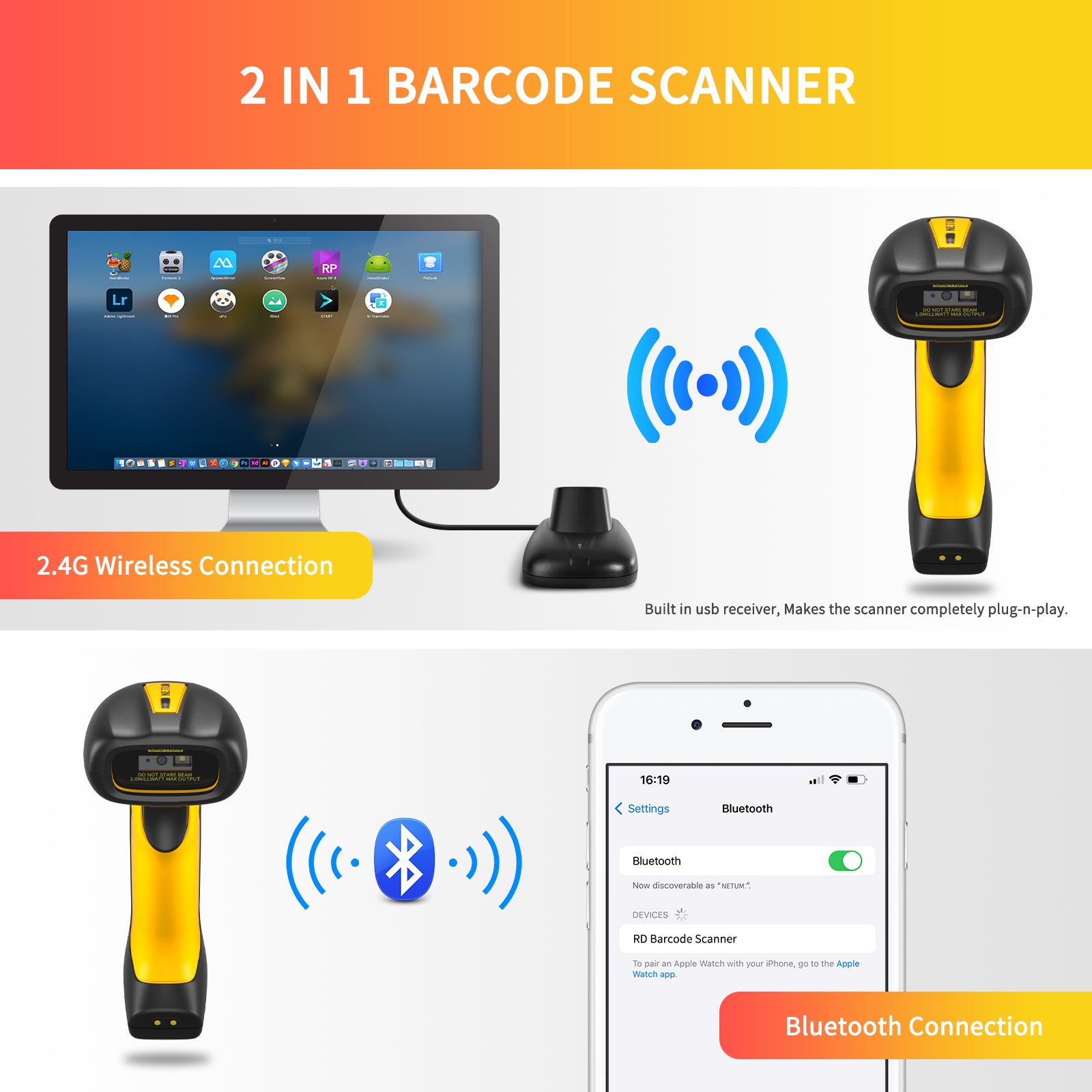

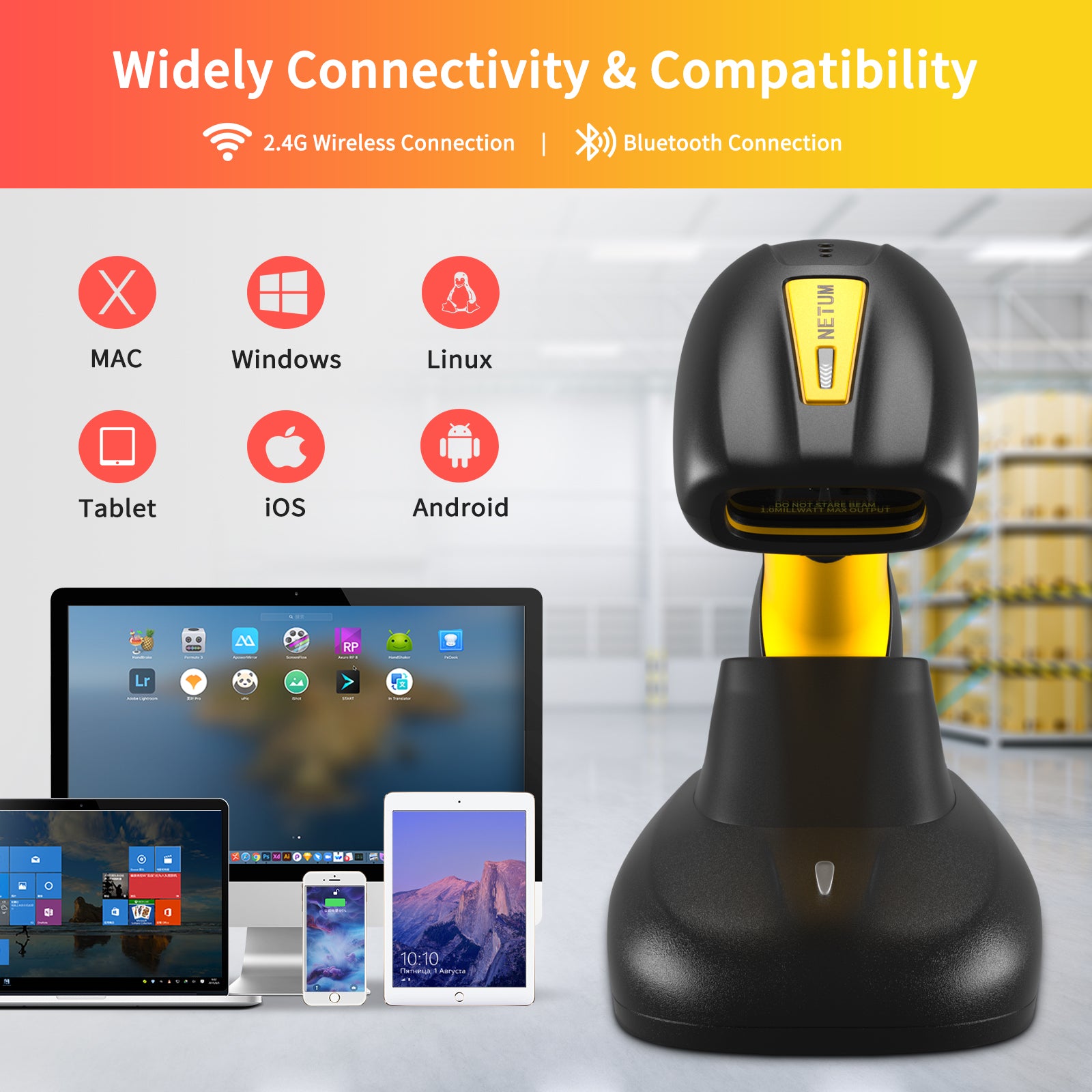

Connect via 2.4G Wireless & Bluetooth
NETUM NT-1202W barcode scanner works with 2.4G wireless and Bluetooth transmission. The cradle has a built in 2.4G receiver that makes the scanner completely plug-n-play, Connect the scanner to your device via Bluetooth, Support HID / SPP / BLE mode, Easily connected with your laptop, PC, smartphones, tablet, iphone, ipad, POS.

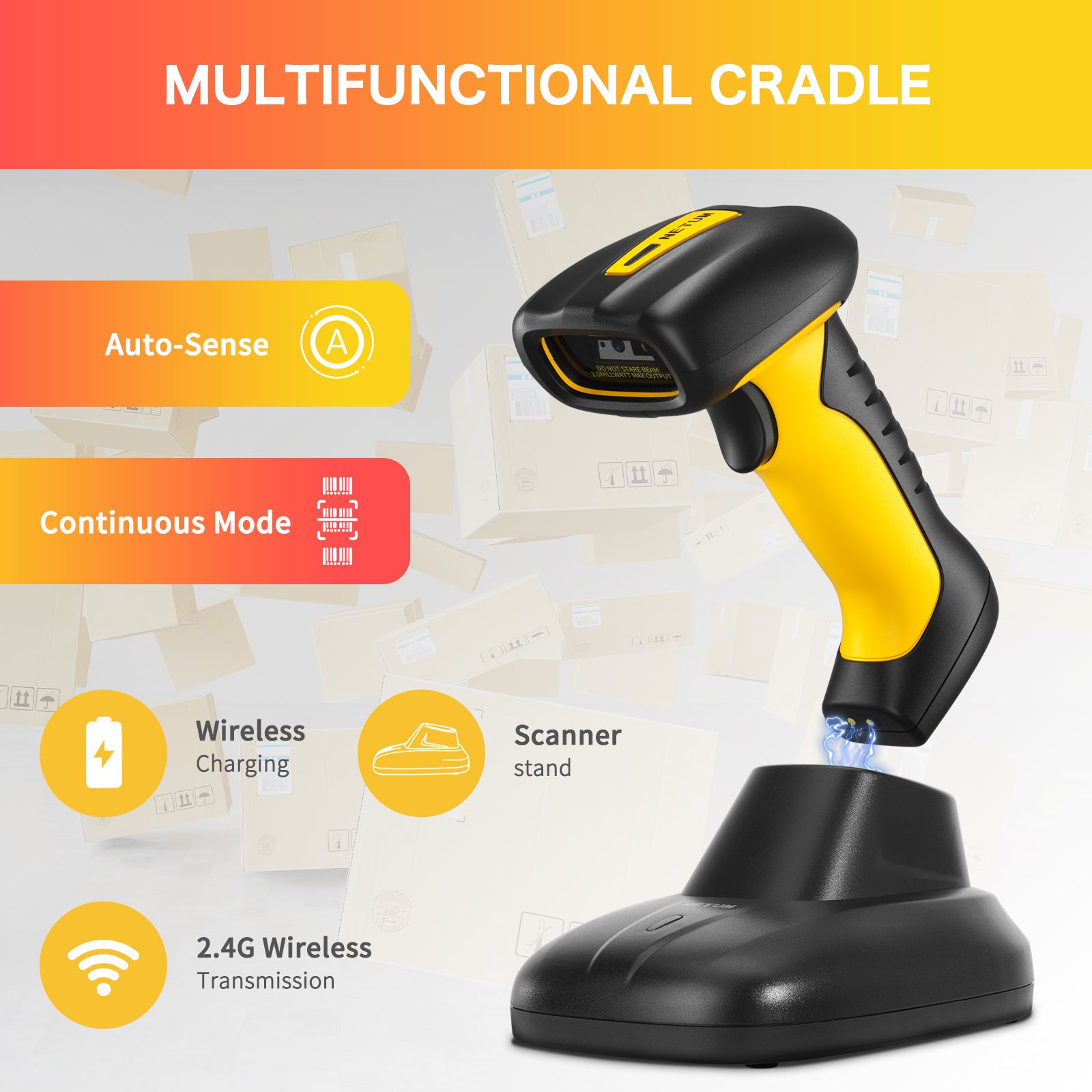

Automatic Scanning & Storage Mode
NT-1202W QR 2D Bluetooth wireless barcode scanner have three scanning modes: manual trigger mode, continuous scanning mode and auto-sensing scanning mode. hand free and handheld operation. In addition, there is a storage mode. Storage mode can be used when you are out of range of Bluetooth and wireless connectivity. Supports storage of up to 100,000 barcodes. Note: Before use, you need to scan the corresponding setting barcode on the manual.
Wireless
Radio Technology 2.4GHz, Bluetooth

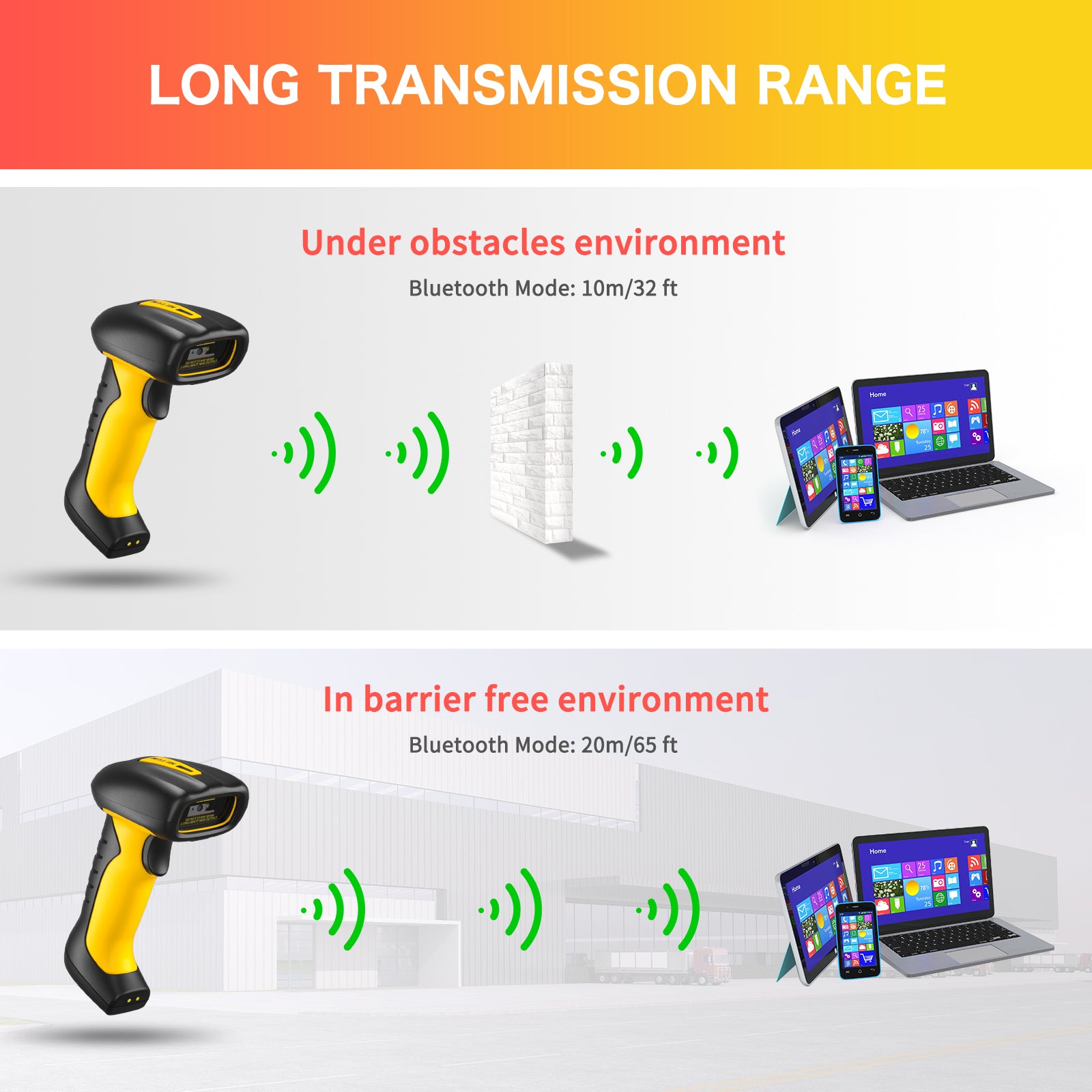

Communication Distance 30-100m (line of sight)

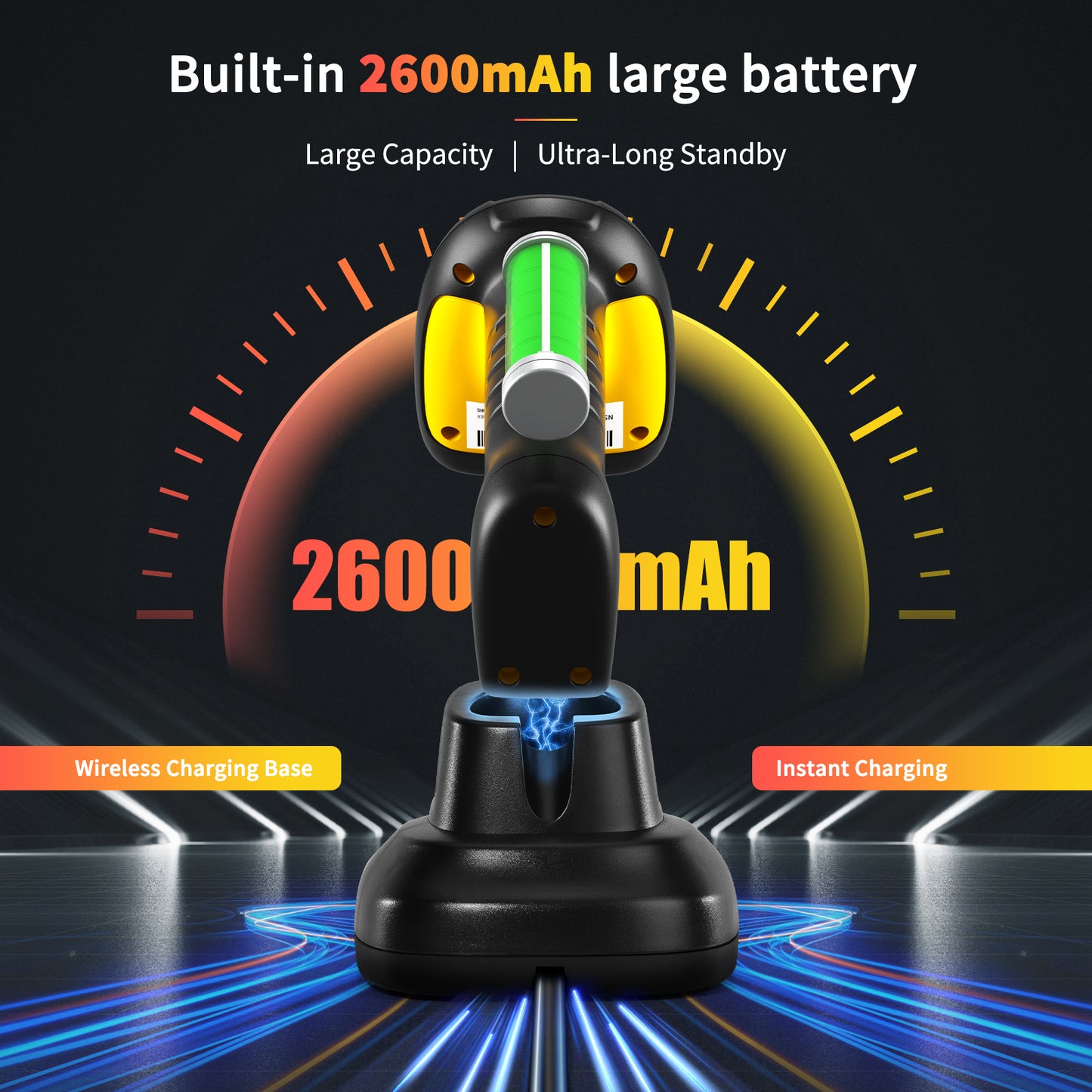

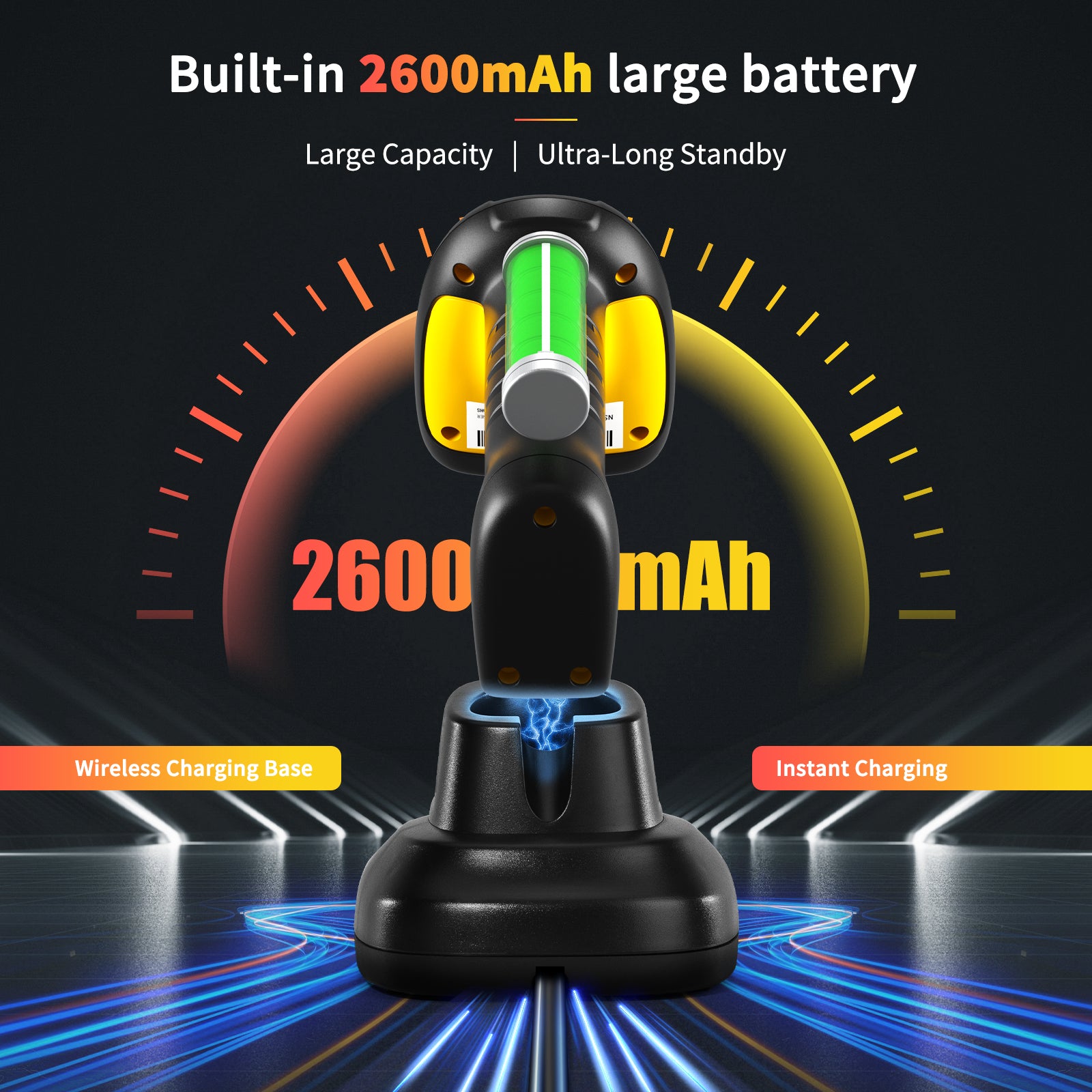

Battery 2600mAh
Expected Battery Life 20 hours of continuous operation
Expected Charge Time 4 hours
Flash Memory 2MB
Performance
Sensor Revolution 1280H × 1024V pixels
Adaptive Field of View Maximum Horizontal: 42°, Maximum Vertical: 40°
Scanning angle left and right ±60°, up and down ±60°, rotate 360°
Printing contrast ≥20% (UPC/EAN 100%, PCS 90%)
Lighting white glare
Focus Red dot LED aiming
Reading Accuracy 1D : ≥3mil ; 2D : ≥5mil(HD); 2D : ≥7 mil(SR)
Decode Ranges (Typical)
QR (5mil) 65mm~105mm
Code39(3mil) 45mm~160mm
Code39(5mil) 35mm~250mm
EAN(13mil) 40mm~420mm
Symbologies
2D: Data Matrix , QR Code , Micro QR，PDF417, Micro PDF417 ，Aztec , MaxiCode.
1D: UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93, Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 IATA 2 of 5，Matrix 2 of 5，Straight 2 of 5，Pharmacode，GS1 DataBar 14，GS1 DataBar Expanded，GS1 DataBar Limited，Composite Code A, Composite Code B, Composite Code C.
Physical
Dimensions (L×W×H) Scanner: 88.0×70.0×178.0mm Cradle: 167.0×105.5×75.2mm
Weight Scanner: 230g, Cradle: 126g
Notification Beep, LED, vibration
Working voltage DC 3.3V±5%
Operating current 260 mA ±5% (typical), 380 mA ±5% (maximum)
Safety Regulations EMC CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
