NETUM Industrial Fixed 2D Barcode Scanner
NETUM Industrial Fixed 2D Barcode Scanner
Regular price
$299.00 USD
Regular price
Sale price
$299.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
$239.20
Buy at discounted prices
| Minimum Qty | Maximum Qty | Discount |
|---|---|---|
| 2 | 4 | 10% off |
| 5 | 9 | 12% off |
| 10 | 49 | 15% off |
| 50 | 99 | 17% off |
| 100 | + | 20% off |

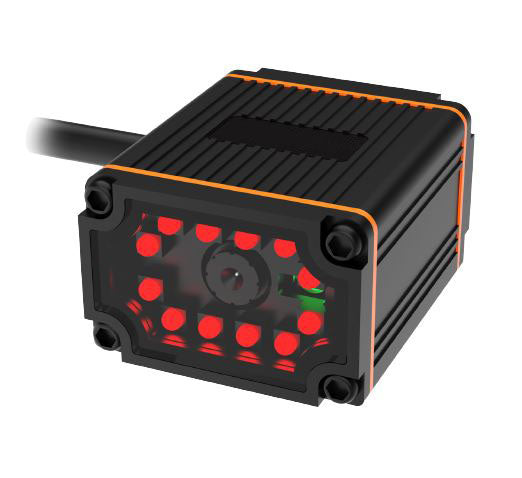

NETUM NT-96 Industrial Fixed 2D Barcode Scanner
| Specification: |
| Image Sensor: 1280 * 800 |
| Light Source: Red LED/White LED |
| Decode Capabilities: |
| 1D - UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite Code-A, Composite Code-B , Composite Code-C |
| 2D - PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR ,Aztec ,MaxiCode ,DotCode |
| Resolution: 1D : ≥4 mil ; 2D : ≥9 mil |
| GTF-65SR DOF(mm): Code39 (4 mil) : 60 mm ~ 250 mm EAN -13 (13 mil) : 50 mm ~400 mm QR Code (10 mil) : 35 mm ~130 mm |
| GTF-65HD DOF(mm): Code39 (3 mil) : 50 mm ~ 90 mm EAN -13 (10 mil) : 40 mm ~150 mm QR Code (7 mil) : 35 mm ~120 mm |
| Imager Field of View 46° (H) x 29° (V) |
| Skew/Pitch/Roll Skew: ±60° , Pitch: ±60° , Roll: ±360° |
| Minimum Print Contrast: ≥20% (UPC/EAN 100% , PCS 90%) |
| Dimension (mm): 36 (W) × 43 (D) × 24 (H) |
| Supported Host Interfaces: USB (HID ; CDC) RS232 Ethernet TCP/UDP/Modbus |
| User Indicators: Beeper LEDs |
| Output Signal: 1 Optoisolated Input (NPN / PNG / Relay) |
| Input Signal: 2 Optoisolated output Good ; NG |
| Input Voltage: VDC 5.0-36.0V |
| Operating Current: 300 mA±5% Typical, 450 mA±5% Max |
| Standby Current: 100 mA±5% |
| Operating Temp: -20℃~+50℃ |
| Storage Temp: -40℃~+70℃ |
| Humidity: 5%~95% (non-condensing) |
| Ambient Light Immunity: 0~8,600 Lux (Candles) 0~100,000 Lux (direct sunlight) |
| Regulatory: CE EN55022 , FCC Part 15 Class B , CE EMC Class B |
