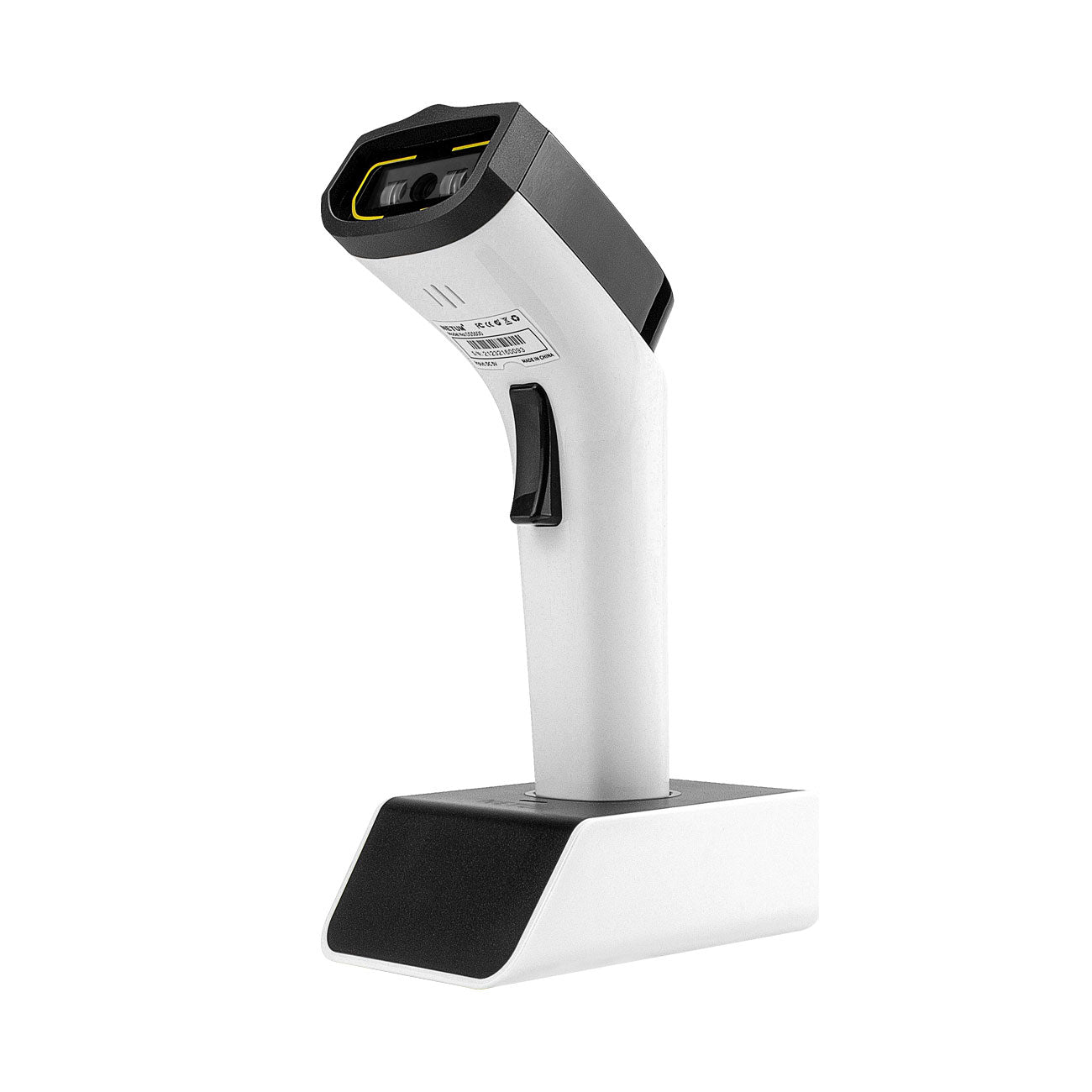

NETUM DS8100 Hybrid RFID Imager, NFC HF RFID Tags Reader and 1D/2D QR Barcode Scan, Connect via Bluetooth Wireless for Retail Hospitality System

NETUM DS8100 Hybrid RFID Imager, NFC HF RFID Tags Reader and 1D/2D QR Barcode Scan, Connect via Bluetooth Wireless for Retail Hospitality System

$97.00 USD
$179.00 USD $97.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
$77.60

Buy at discounted prices

Minimum Qty Maximum Qty Discount
2 4 10% off
5 9 12% off
10 49 15% off
50 99 17% off
100 + 20% off

NETUM DS8100 Hybrid RFID Imager is the future of the data capture industry. Under programmatic control, the reader seamlessly supports the widest variety of HF RFID tags and bar code labels, as well as standard and most proprietary card formats; suitable for hospitality, retail, and logistic industry settings via Bluetooth low-energy connection. Compatible with Windows, Mac OS, iOS and Android. the DS8100 makes RFID and bar code reading simple.

With the DS8100 Series, you can give shoppers the checkout experience they expect — short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning.

You get NETUM’s industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale.

Supported 1D Symbologies
UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japanese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen.


Supported 2D Symbologies
QR Code, Micro QR Code Data Matrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOC F Composite Codes (CC-A, CC-B, CC-C)

HF RFID Performance

  1. Reading - Fast RFID reader (HF tags, tags, smart devices).
  2. Write - Write to tag.
  3. Reader pattern templates - reader and HID patterns for popular tag types. Can be customized via application over SPP/BLE.



  • Carrier frequency: 13.56 MHz (RFID HF)
  • Read/write speed 26 kbps (ISO 15693), 106kbps (14443A)
  • Antenna: Integrated, 25mm x 14mm, balanced

Read and write

  1. Tag support: ISO15693: Vicinity Card
  2. ISO/IEC 144434 A
  3. Complies with EPC GEN 2 HF
  4. Write Mode: Write mode is supported using PCSC protocol over BLE. Compatibility depends on card type, content
  5. Performance Carrier frequency: 13.56 MHz (RFID HF) Read/write speed: 26 kbps (ISO 15693), 106kbps (IEC 14443, Antenna: integrated
  6. High frequency RFID tag support: IS015693:I code SL2, LRI512, my-d, taglt HF-I
  7. Proprietary: ICode SLI, PicoTag (without anti-collision), Tag lt HF ISO/IEC 14443 A and B compatible tags, all variants (Mifare, Sony FeliCA), tag reader mode
  8. Write mode supports write mode via Bluetooth LE. Compatibility depends on card type, content.
  9. Maximum RFID read range: 0.4"- 2" (10- 30 mm)
System Requirements:
Mobile device: iOS, Android
PC device: Windows 10/8.1/8/7/Vista/XP/CE, Mac OS X, Linux
